分布式作业

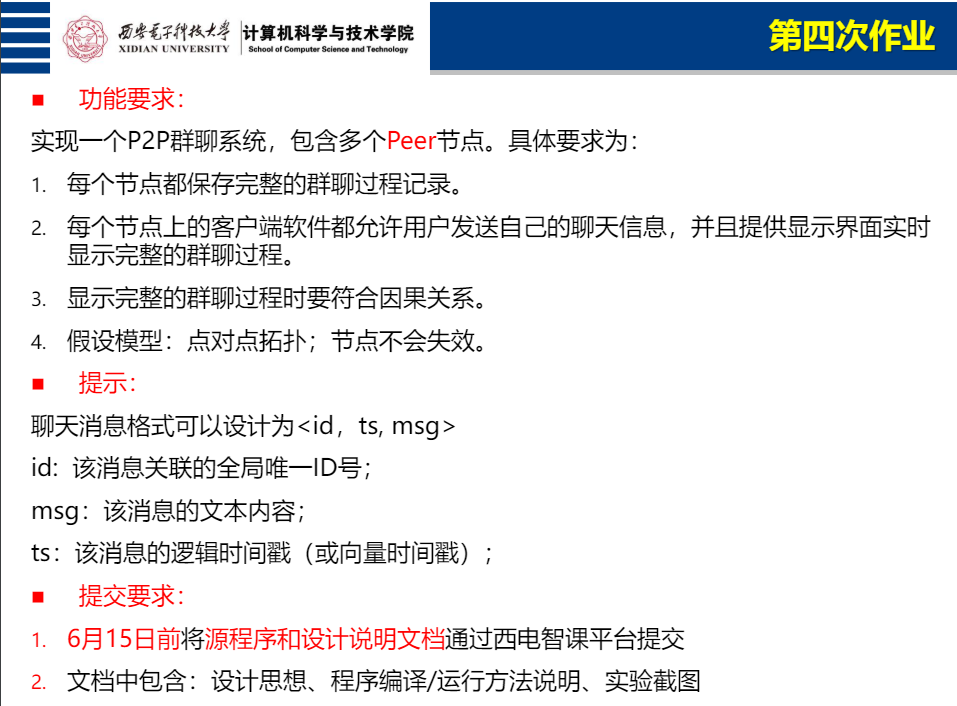

# 问题重述

# 实验原理

# 全序广播协议

采用一个服务端，多个客户端的方法，当客户端收到服务端传来的信息时，判断该信息属于 ACK 信息、新加入客户端信息还是 message 消息。

如果这条信息是属于 ACK 信息，将对应消息 m 的 ACK+1, 观察队列头部的消息，如果关于该消息已经收到了所有节点的 ACK 消息，则将其从队列中取出，并完成投递。

如果这条信息属于发送的信息，将消息按逻辑时间戳先后顺序放入缓存队列，观察缓存队列头部的消息，如果该消息尚未广播过 ACK 消息，则向所有节点发送关于该消息的 ACK 信息.

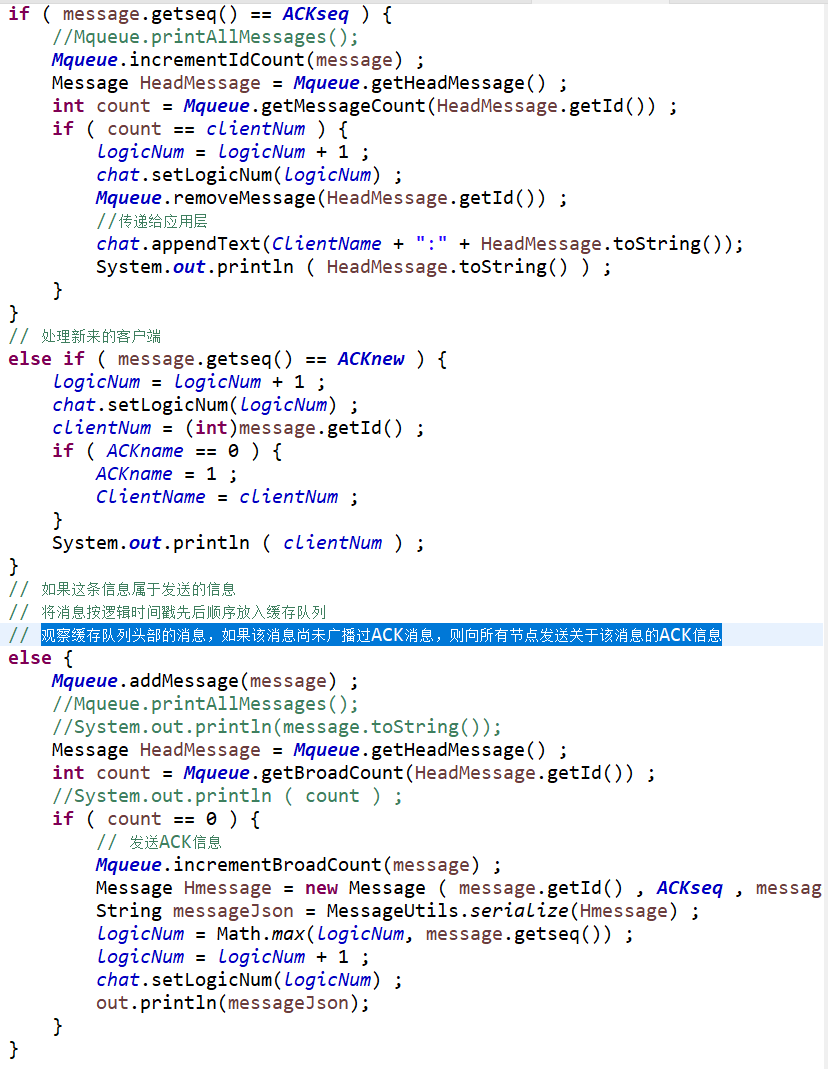

具体实现如下图代码所示

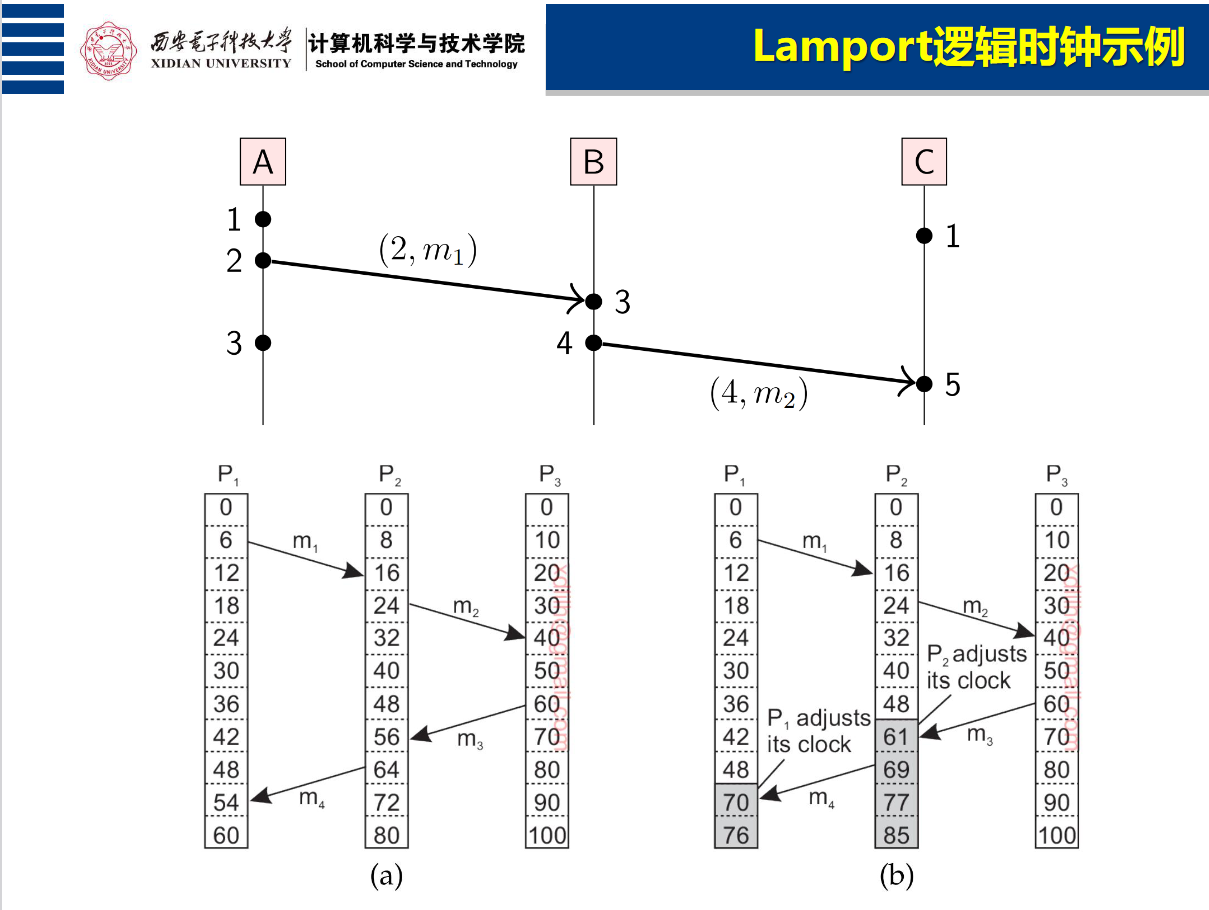

# 因果关系

当客户端收到一条消息就将自己的时间戳与该信息的时间戳相比较，更新为更大的值实现因果关系的同一。

具体实现如下

# 传递消息

采用 socket 传递消息

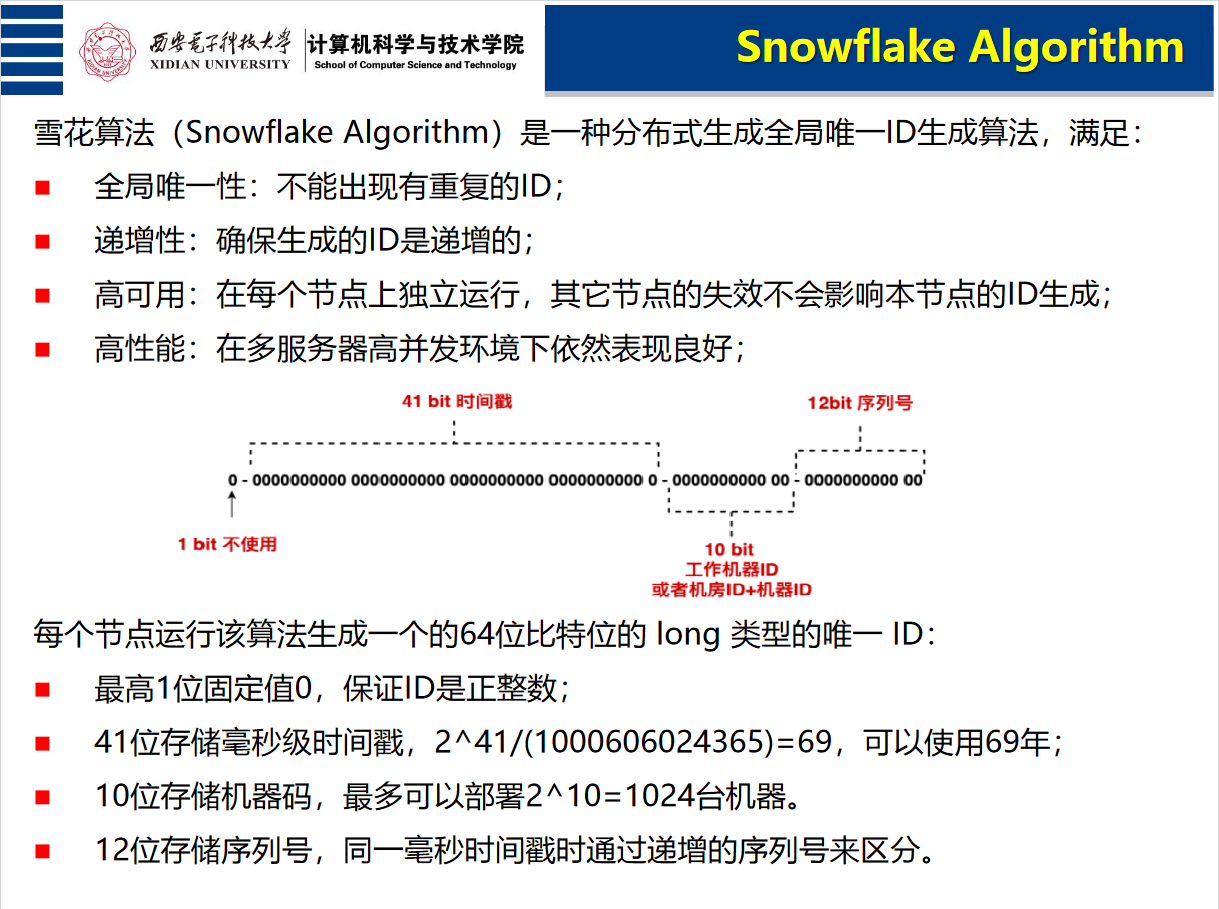

# 雪花算法

为 Server 提供信息的 ID 号

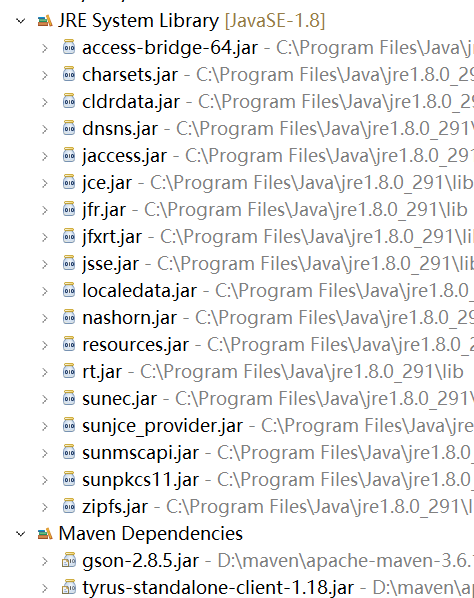

# 实验环境

# 软件版本

Windows11
Eclipse IDE for Java Developers - 2022-03
Java 1.8
Maven3.6.1
Gson2.8.5

# pom 环境

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.ls</groupId>
  <artifactId>p2psystem</artifactId>
  <version>0.0.1-SNAPSHOT</version>

  <dependencies>

  	<dependency>
    	<groupId>com.google.code.gson</groupId>
    	<artifactId>gson</artifactId>
    	<version>2.8.5</version>
  	</dependency>

  	<dependency>
    	<groupId>org.glassfish.tyrus.bundles</groupId>
    	<artifactId>tyrus-standalone-client</artifactId>
    	<version>1.18</version>
	</dependency>


  </dependencies>


</project>

# 设计思路

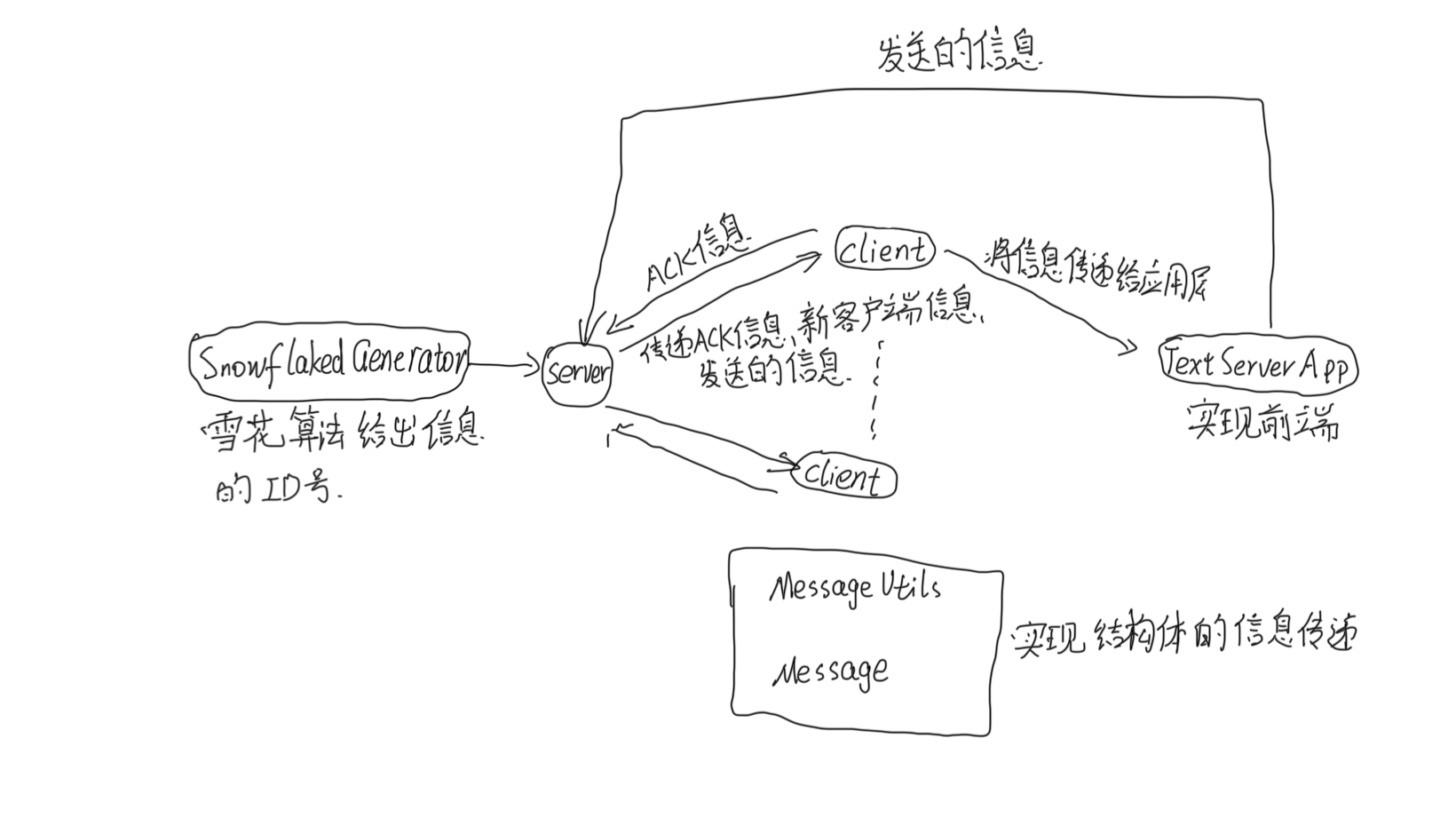

# 构架图

# 各个代码的用途

# Client

接受服务端的信息，处理终端和前端 UI 的信息，将最终信息传递给 TextSaverApp 进行展示。

# Server

不断接收来自 PORT 端口的信息，并将信息传给所有的 Client 节点，值得主义的是由于 messageID 是唯一的，所以需要进行锁操作，我采用了 Java 中的 synchronized 函数对此变量进行锁操作。

# TextSaverAPP

对文本框接收到的信息进行处理并传递给 Server 服务器；对从 Client 收到的信息进行展示。

# MessageUtils\Message

对信息进行定义并执行序列化和反序列化操作

# MessageQueue

对信息进行存储、删除、记录次数操作，并利用优先队列对信息进行排序。

# SnowflakeIdGenerator

生成信息的 ID 号

# Commands

mvn clean
mvn compile

mvn exec:java -Dexec.mainClass="p2psystem.Server"

mvn exec:java -Dexec.mainClass="p2psystem.Client"

# JAVA 程序

# Client.java

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104

package p2psystem;

import java.io.* ;
import java.net.Socket;
import com.google.gson.Gson;

public class Client {

	private static final String SEVERADDRESS = "127.0.0.1" ;
	private static final int PORT = 8189 ;
	private static int clientNum = 1 ;
	private static int logicNum = 1 ;
	private static final Gson gson = new Gson() ;
	private static final int ACKseq = 1145141919 ;
	private static final int ACKnew = 1919810 ;
	private static final MessageQueue Mqueue = new MessageQueue ( ) ;
	private static TextSaverApp chat = new TextSaverApp("chatgroup") ;
	private static int ClientName ;
	private static int ACKname = 0 ;

	public static void main ( String [] args ) throws Exception {
		// 定义socket,输入输出变量
		Socket socket = new Socket ( SEVERADDRESS , PORT ) ;
		BufferedReader in = new BufferedReader ( new InputStreamReader ( socket.getInputStream() ) ) ;
		PrintWriter out = new PrintWriter ( socket.getOutputStream() , true ) ;
		BufferedReader consoleInput = new BufferedReader ( new InputStreamReader ( System.in ) ) ;
		// 创造一个不断接受服务端信息的进程
		new Thread ( ( ) -> {
			try {
				String serverMessageJson ;
				while ( ( serverMessageJson = in.readLine() ) != null ) {
					Message message = MessageUtils.deserialize(serverMessageJson) ;
					// 如果这条信息是属于ACK信息
					// 将对应消息m的ACK+1
					// 观察队列头部的消息，如果关于该消息已经收到了所有节点的ACK消息，则将其从队列中取出，并完成投递
					if ( message.getseq() == ACKseq ) {
						//Mqueue.printAllMessages();
						Mqueue.incrementIdCount(message) ;
						Message HeadMessage = Mqueue.getHeadMessage() ;
						int count = Mqueue.getMessageCount(HeadMessage.getId()) ;
						if ( count == clientNum ) {
							logicNum = logicNum + 1 ;
							chat.setLogicNum(logicNum) ;
							Mqueue.removeMessage(HeadMessage.getId()) ;
							//传递给应用层
							chat.appendText(ClientName + ":" + HeadMessage.toString());
							System.out.println ( HeadMessage.toString() ) ;
						}
					}
					// 处理新来的客户端
					else if ( message.getseq() == ACKnew ) {
						logicNum = logicNum + 1 ;
						chat.setLogicNum(logicNum) ;
						clientNum = (int)message.getId() ;
						if ( ACKname == 0 ) {
							ACKname = 1 ;
							ClientName = clientNum ;
						}
						System.out.println ( clientNum ) ;
					}
					// 如果这条信息属于发送的信息
					// 将消息按逻辑时间戳先后顺序放入缓存队列
					// 观察缓存队列头部的消息，如果该消息尚未广播过ACK消息，则向所有节点发送关于该消息的ACK信息
					else {
						Mqueue.addMessage(message) ;
						//Mqueue.printAllMessages();
						//System.out.println(message.toString());
						Message HeadMessage = Mqueue.getHeadMessage() ;
						int count = Mqueue.getBroadCount(HeadMessage.getId()) ;
						//System.out.println ( count ) ;
						if ( count == 0 ) {
							// 发送ACK信息
							Mqueue.incrementBroadCount(message) ;
							Message Hmessage = new Message ( message.getId() , ACKseq , message.getContent() )  ;
							String messageJson = MessageUtils.serialize(Hmessage) ;
							logicNum = Math.max(logicNum, message.getseq()) ;
							logicNum = logicNum + 1 ;
							chat.setLogicNum(logicNum) ;
							out.println(messageJson);
						}
					}
				}
			} catch ( IOException e ) {
				e.printStackTrace() ;
			}
		}).start ( ) ;
		// 告诉服务器有新客户端加入
		Message infoM = new Message( 0 , ACKnew , "Hello") ;
		String messageJso = MessageUtils.serialize(infoM) ;
		out.println ( messageJso ) ;
		// 对面板输入的数据处理
		// 对终端输入的数据进行处理
		String userInput ;
		while ( (userInput = consoleInput.readLine()) != null ) {
			Message message = new Message ( 0 , logicNum , userInput ) ;
			String messageJson = MessageUtils.serialize(message) ;
			logicNum = logicNum + 1 ;
			chat.setLogicNum(logicNum) ;
			out.println(messageJson);
		}
	}

}

# Server.java

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83

package p2psystem;

import java.io.* ;
import java.net.* ;
import java.util.* ;
import java.util.concurrent.ConcurrentHashMap;
import com.google.gson.Gson;

public class Server {
	// 定义需要的全局变量
	private static final int PORT = 8189 ;
	private static int messageID = 0 ;
	private static Map<Integer,PrintWriter> clientWriters = new ConcurrentHashMap<>() ;
	private static final Gson gson = new Gson() ;
	private static final SnowflakeIdGenerator idGenerator = new SnowflakeIdGenerator ( 1 , 1 ) ;
	private static final int ACKseq = 1145141919 ;
	private static final int ACKnew = 1919810 ;
	private static int clientNum = 0 ;

	public static void main ( String[] args ) {
		System.out.println ( "Central server started!") ;
		try ( ServerSocket serverSocket = new ServerSocket ( PORT ) ) {
			int count = 0 ;
			while ( true ) {
				new ClientHandler( serverSocket.accept() ).start() ;
			}
		} catch ( IOException e ) {
			e.printStackTrace();
		}
	}

	private static class ClientHandler extends Thread {
		private Socket socket ;
		private int clientID ;
		private BufferedReader in ;
		private PrintWriter out ;

		public ClientHandler ( Socket socket ) {
			this.socket = socket ;
		}

		@Override
		public void run ( ) {
			try {
				BufferedReader in = new BufferedReader ( new InputStreamReader ( socket.getInputStream() ) ) ;
				PrintWriter out = new PrintWriter ( socket.getOutputStream() , true ) ;
				clientID = socket.getPort() ;
				clientWriters.put(clientID, out) ;

				String messageJson ;
				while ( (messageJson = in.readLine()) != null ) {
					// synchronized用来锁这个相同同步块的线程，因为messageID时唯一的，只能有一个来进行写操作
					synchronized ( Server.class ) {
						Message message = MessageUtils.deserialize(messageJson);
						if ( message.getId() == 0 )
							message.setId ( idGenerator.nextId() ) ;
						if ( message.getseq() == ACKnew ) {
							message.setId((long)clientNum+(long)1);
							clientNum = clientNum + 1 ;
						}
						String broadcastMessage = MessageUtils.serialize(message) ;
						for ( PrintWriter writer : clientWriters.values() ) {
							writer.println ( broadcastMessage ) ;
						}
					}
				}
			} catch ( IOException e ) {
				e.printStackTrace();
			} finally {
				if ( out != null ) {
					clientWriters.remove(clientID) ;
				}
				try {
					socket.close();
				} catch ( IOException e ) {
					e.printStackTrace();
				}
			}
		}
	}

}

# SnowflakeldGenerator.java

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70

package p2psystem;

public class SnowflakeIdGenerator {
    private final long workerId;
    private final long datacenterId;

    private final long twepoch = 1288834974657L;

    private final long workerIdBits = 5L;
    private final long datacenterIdBits = 5L;
    private final long maxWorkerId = -1L ^ (-1L << workerIdBits);
    private final long maxDatacenterId = -1L ^ (-1L << datacenterIdBits);
    private final long sequenceBits = 12L;

    private final long workerIdShift = sequenceBits;
    private final long datacenterIdShift = sequenceBits + workerIdBits;
    private final long timestampLeftShift = sequenceBits + workerIdBits + datacenterIdBits;
    private final long sequenceMask = -1L ^ (-1L << sequenceBits);

    private long lastTimestamp = -1L;
    private long sequence = 0L;

    public SnowflakeIdGenerator(long workerId, long datacenterId) {
        if (workerId > maxWorkerId || workerId < 0) {
            throw new IllegalArgumentException(String.format("worker Id can't be greater than %d or less than 0", maxWorkerId));
        }
        if (datacenterId > maxDatacenterId || datacenterId < 0) {
            throw new IllegalArgumentException(String.format("datacenter Id can't be greater than %d or less than 0", maxDatacenterId));
        }
        this.workerId = workerId;
        this.datacenterId = datacenterId;
    }

    public synchronized long nextId() {
        long timestamp = timeGen();

        if (timestamp < lastTimestamp) {
            throw new RuntimeException(String.format("Clock moved backwards. Refusing to generate id for %d milliseconds", lastTimestamp - timestamp));
        }

        if (lastTimestamp == timestamp) {
            sequence = (sequence + 1) & sequenceMask;
            if (sequence == 0) {
                timestamp = tilNextMillis(lastTimestamp);
            }
        } else {
            sequence = 0L;
        }

        lastTimestamp = timestamp;

        return ((timestamp - twepoch) << timestampLeftShift) |
                (datacenterId << datacenterIdShift) |
                (workerId << workerIdShift) |
                sequence;
    }

    protected long tilNextMillis(long lastTimestamp) {
        long timestamp = timeGen();
        while (timestamp <= lastTimestamp) {
            timestamp = timeGen();
        }
        return timestamp;
    }

    protected long timeGen() {
        return System.currentTimeMillis();
    }
}

# TextSaverApp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138

package p2psystem;

import javax.swing.*;
import java.awt.*;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.io.BufferedReader;
import java.io.BufferedWriter;
import java.io.FileWriter;
import java.io.IOException;
import java.io.InputStreamReader;
import java.io.PrintWriter;
import java.net.Socket;
import java.net.UnknownHostException;

public class TextSaverApp {
    private JFrame frame;
    private JTextArea textArea;
    private JTextField textField;
    private JButton sendButton;
    private BufferedWriter writer;

    private static final String SEVERADDRESS = "127.0.0.1" ;
	private static final int PORT = 8189 ;
	private static int logicNum = 1 ;
	Socket socket ;
	BufferedReader in ;
	PrintWriter out ;

	public void setLogicNum ( int logicNum ) {
		this.logicNum = logicNum ;
	}

    public TextSaverApp() {
        setupUI();
        setupWriter("output.txt");
        try {
        	socket = new Socket ( SEVERADDRESS , PORT ) ;
        	in = new BufferedReader ( new InputStreamReader ( socket.getInputStream() ) ) ;
        	out = new PrintWriter ( socket.getOutputStream() , true ) ;
        } catch ( IOException e ) {
        	e.getStackTrace() ;
        }
    }

    public TextSaverApp(String filePath) {
        setupUI();
        setupWriter(filePath);
        try {
        	socket = new Socket ( SEVERADDRESS , PORT ) ;
        	in = new BufferedReader ( new InputStreamReader ( socket.getInputStream() ) ) ;
        	out = new PrintWriter ( socket.getOutputStream() , true ) ;
        } catch ( IOException e ) {
        	e.getStackTrace() ;
        }
    }

    private void setupUI() {
        frame = new JFrame("Text Saver");
        textArea = new JTextArea(20, 50);
        textField = new JTextField(40);
        sendButton = new JButton("Send");

        textArea.setEditable(false);
        JPanel panel = new JPanel();
        panel.setLayout(new BorderLayout());
        panel.add(new JScrollPane(textArea), BorderLayout.CENTER);

        JPanel inputPanel = new JPanel();
        inputPanel.add(textField);
        inputPanel.add(sendButton);

        frame.getContentPane().add(panel, BorderLayout.CENTER);
        frame.getContentPane().add(inputPanel, BorderLayout.SOUTH);

        sendButton.addActionListener(new ActionListener() {
            @Override
            public void actionPerformed(ActionEvent e) {
                sendText();
            }
        });

        textField.addActionListener(new ActionListener() {
            @Override
            public void actionPerformed(ActionEvent e) {
                sendText();
            }
        });

        frame.pack();
        frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        frame.setVisible(true);
    }

    private void setupWriter(String filePath) {
        try {
            writer = new BufferedWriter(new FileWriter(filePath, true));
        } catch (IOException e) {
            e.printStackTrace();
        }
    }

    private void sendText() {
        String text = textField.getText();
        if (!text.isEmpty()) {
        	Message message = new Message ( 0 , logicNum , text ) ;
			String messageJson = MessageUtils.serialize(message) ;
			logicNum = logicNum + 1 ;
			out.println(messageJson);
			textField.setText("");
            /*textArea.append(text + "\n");


            try {
                writer.write(text);
                writer.newLine();
                writer.flush();
            } catch (IOException e) {
                e.printStackTrace();
            }*/
        }
    }

    public void appendText(String text) {
        if (!text.isEmpty()) {
            textArea.append(text + "\n");

            try {
                writer.write(text);
                writer.newLine();
                writer.flush();
            } catch (IOException e) {
                e.printStackTrace();
            }
        }
    }
}

# MessageQueue

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75

package p2psystem;

import java.util.*;

public class MessageQueue {
    private PriorityQueue<Message> messageQueue;
    private Map<Long, Integer> idCounts;
    private Map<Long, Integer> broadCounts;

    public MessageQueue() {
        // 初始化优先队列和ID计数器
        messageQueue = new PriorityQueue<>(Comparator.comparingLong(Message::getseq));
        idCounts = new HashMap<>();
        broadCounts = new HashMap<>() ;
    }

    // 添加消息到队列
    public void addMessage(Message message) {
        messageQueue.offer(message); // 添加到优先队列
    }

    public void incrementBroadCount ( Message message ) {
    	broadCounts.put(message.getId(), 1 ) ;
    }

    public int getBroadCount ( long id ) {
    	return broadCounts.getOrDefault(id, 0);
    }

    // 增加id的ACK计数
    public void incrementIdCount ( Message message ) {
    	idCounts.put(message.getId(), idCounts.getOrDefault(message.getId(), 0) + 1); // 增加ID计数
    }

    // 删除指定ID的消息
    public void removeMessage(long id) {
        // 创建一个新的优先队列用于存储剩余的消息
        PriorityQueue<Message> newQueue = new PriorityQueue<>(Comparator.comparingLong(Message::getseq));
        // 从原队列中移除所有指定ID的消息，并更新ID计数
        while (!messageQueue.isEmpty()) {
            Message message = messageQueue.poll();
            if (message.getId() != id) {
                newQueue.offer(message); // 将非指定ID的消息添加到新队列中
            } else {
                idCounts.put(id, 0);
            }
        }
        // 更新队列为新队列
        messageQueue = newQueue;
    }

    // 获取头部信息
    public Message getHeadMessage ( ) {
    	return messageQueue.peek() ;
    }

    // 获取队列中的所有消息
    public List<Message> getAllMessages() {
        return new ArrayList<>(messageQueue);
    }

    // 获取指定ID的消息数量
    public int getMessageCount(long id) {
        return idCounts.getOrDefault(id, 0);
    }

    // 打印队列中的所有消息
    public void printAllMessages() {
        System.out.println("All Messages in the Queue:");
        for (Message message : messageQueue) {
            System.out.println(message.toString());
        }
    }
}

# Message

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

package p2psystem;

import java.io.Serializable;

public class Message implements Serializable {
	private static final long serialVersionUID = 1L ;

	private long id ;
	private String content ;
	private int seq ;

	public Message ( long id , int seq , String content ) {
		this.id = id ;
		this.seq = seq ;
		this.content = content ;
	}

	public long getId ( ) { return id ; }
	public void setId ( long id ) { this.id = id ; }
	public int getseq ( ) { return seq ; }
	public void setseq ( int seq ) { this.seq = seq ; }
	public String getContent ( ) { return content ; }
	public void setContent ( String content ) { this.content = content ; }

	public String toString ( ) {
		return "Message{"+
				"id="+id+
				",seq="+seq+
				",content='"+content+'\''+
				'}';
	}
}

# MessageUtils

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

package p2psystem;

import com.google.gson.Gson;

public class MessageUtils {
	private static final Gson gson = new Gson ( ) ;

	public static String serialize ( Message message ) {
		return gson.toJson(message) ;
	}

	public static Message deserialize ( String json ) {
		return gson.fromJson(json, Message.class) ;
	}
}

# 实现效果

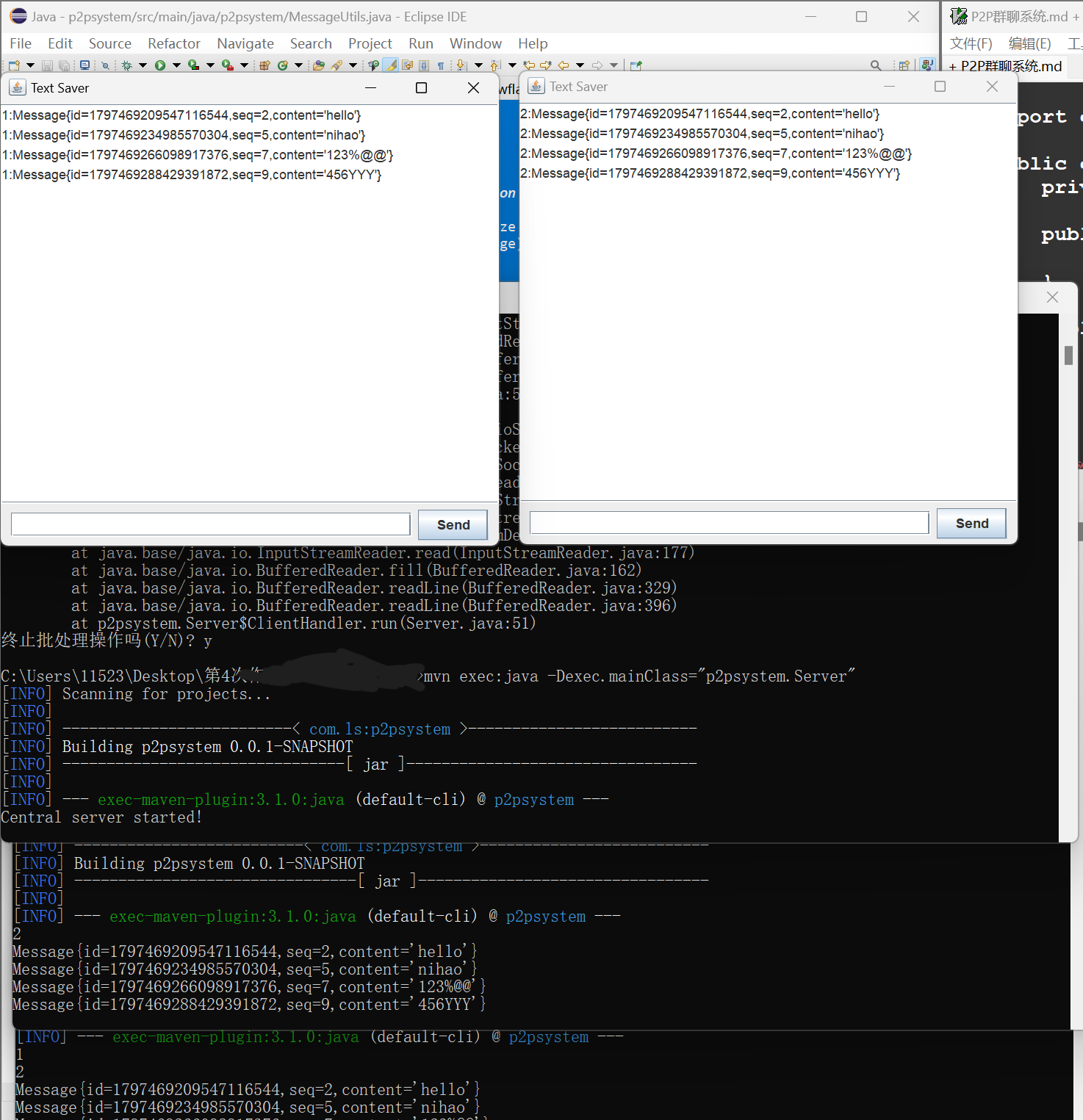

当我们在文本框中输入想发送的信息后，点击 Send 该信息会在 Client 各自的显示界面中出现，对于不同文本框输入的值，我们可以发现 Id 号是严格递增的符合预期，Seq 代表的逻辑序号也是递增的，符合我们实现的原理。可以看到在后台的命令指示符中各自的程序也都是良好的运行，符合预期！

更新于 阅读次数 次
