# 问题重述

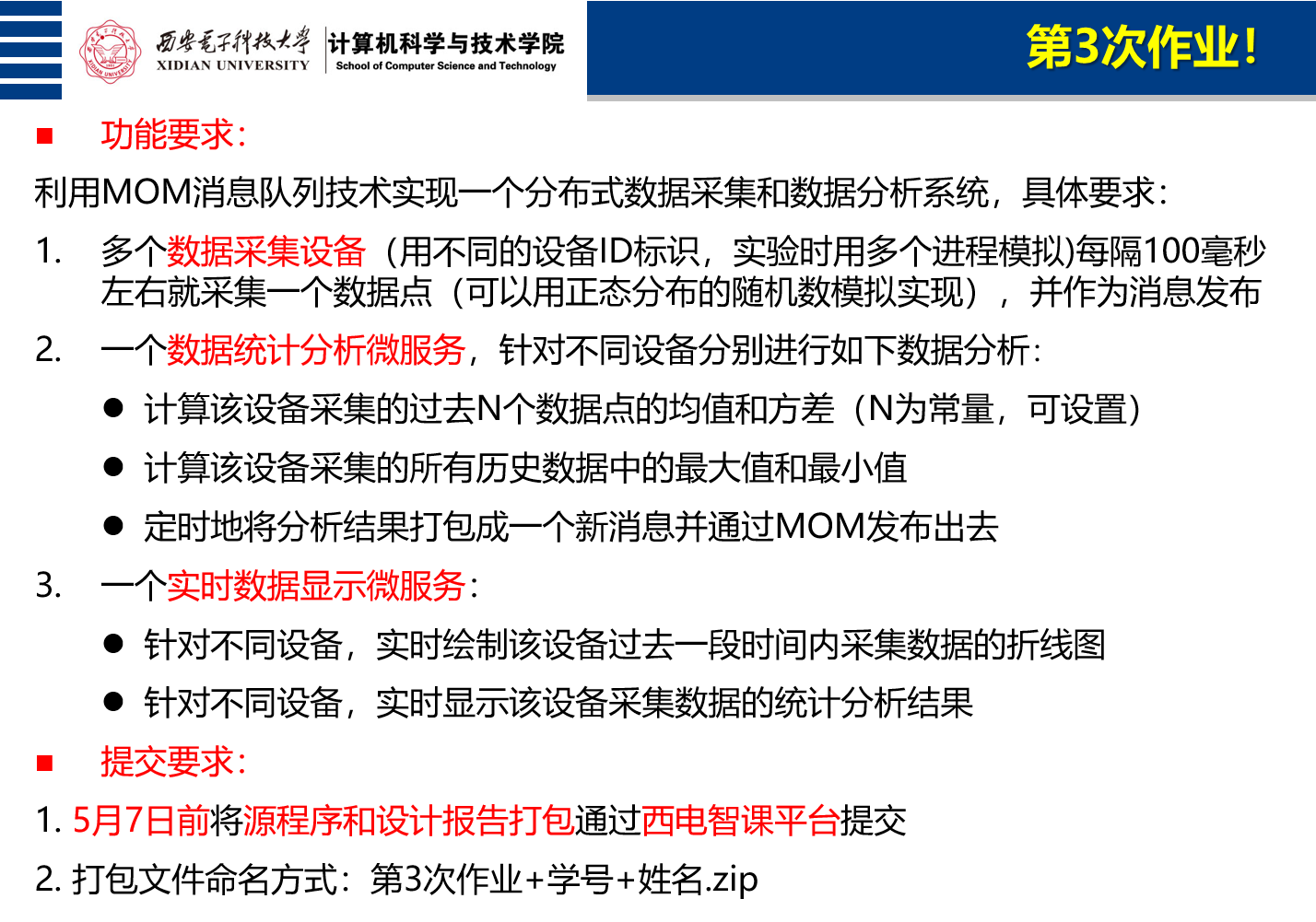

# 实验原理

这段代码涉及到 Java 消息服务（JMS）和消息代理（Apache ActiveMQ），它们是用于构建分布式、可靠和异步消息传递系统的关键技术。

JMS 是 Java 中用于发送和接收消息的 API 规范，它提供了一种标准的方式来创建、发送、接收和管理消息。JMS 有两种消息传递模型：点对点（Point-to-Point）和发布 / 订阅（Publish/Subscribe）。在这个例子中，我们使用的是发布 / 订阅模型。

消息代理 是一个中间件系统，负责将消息从发送者传递给接收者。Apache ActiveMQ 是一个流行的开源消息代理，它实现了 JMS 规范，并提供了可靠的消息传递机制。在这个例子中，ActiveMQ 充当了消息代理的角色，负责管理消息的传递和路由。

# 开发环境

# 软件版本

Windows11
Eclipse IDE for Java Developers - 2022-03
Java 1.8
Active MQ 6.1.0
Xchart 3.8.1
Maven3.6.1

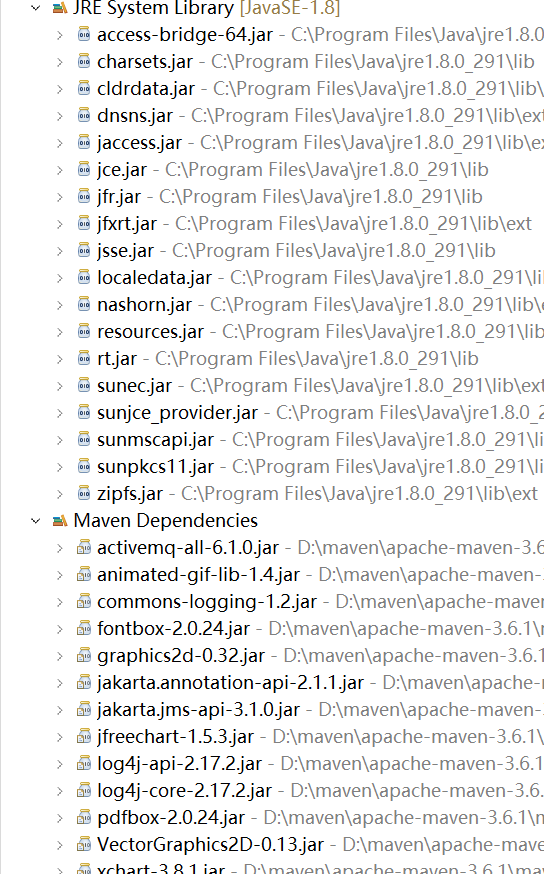

# pom 文件配置

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.encoding>UTF-8</maven.compiler.encoding>
        <java.version>21</java.version>
        <maven.compiler.source>21</maven.compiler.source>
        <maven.compiler.target>21</maven.compiler.target>
    </properties>

    <groupId>com.xidian.dc.mq</groupId>
    <artifactId>mq-topic</artifactId>
    <version>1.0-SNAPSHOT</version>

    <dependencies>
        <!-- https://mvnrepository.com/artifact/org.apache.activemq/activemq-all -->
        <dependency>
	        <groupId>org.knowm.xchart</groupId>
	        <artifactId>xchart</artifactId>
	        <version>3.8.1</version>
        </dependency>
        <dependency>
            <groupId>org.jfree</groupId>
            <artifactId>jfreechart</artifactId>
            <version>1.5.3</version>
        </dependency>
        <dependency>
            <groupId>jakarta.jms</groupId>
            <artifactId>jakarta.jms-api</artifactId>
            <version>3.1.0</version>
        </dependency>
		<dependency>
			<groupId>org.apache.activemq</groupId>
			<artifactId>activemq-all</artifactId>
			<version>6.1.0</version>
		</dependency>
        <dependency>
            <groupId>org.apache.logging.log4j</groupId>
            <artifactId>log4j-api</artifactId>
            <version>2.17.2</version>
        </dependency>
        <dependency>
            <groupId>org.apache.logging.log4j</groupId>
            <artifactId>log4j-core</artifactId>
            <version>2.17.2</version>
        </dependency>
    </dependencies>


</project>

# 设计思路

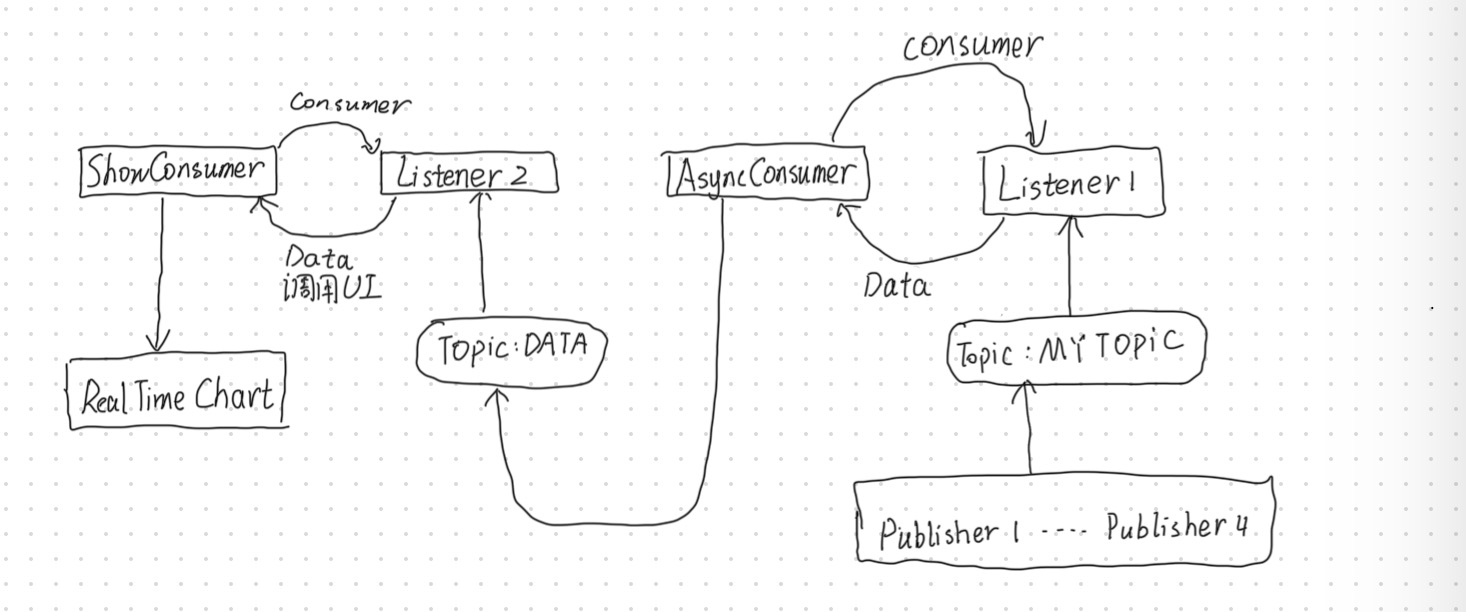

# 构架图

# 各个代码的用途

# Publisher

随机信号产生器微服务，生成正太分布的随机数字并发布在 MYTOPIC 服务上
生成方式 'double randomNumner = random.nextGaussian () * stdDev + mean ; '
通过传输 main 函数的变量来区分不同的产生器

# ASyncConsumer

随机信号统计分析微服务，并将处理后的数据发布在 DATA 服务上
storeMessage: 对传输过来的数据进行处理并存储
publisher: 对存储的数据进行统计和发布

# MyListener

实现 MessageListener 接口，并接收存储数据。实现对 ASyncConsumer 的 consumer 的处理

# ShowConsumer

实时数据显示微服务，并调用 RealTimeChart 实现数据的可视化
paint: 通过调用 RealTimeChart 里面的 plot 来实现实时绘制图像

# MyListener1

实现 MessageListener 接口，并接收存储数据。实现对 ShowConsumer 的 consumer 的处理

# RealTimeChart

实现实时画图

# Commands

mvn clean
mvn compile

mvn exec:java -Dexec.mainClass="ASyncConsumer"

mvn exec:java -Dexec.mainClass="ShowConsumer"

mvn exec:java -Dexec.mainClass="Publisher" -Dexec.args="1"
mvn exec:java -Dexec.mainClass="Publisher" -Dexec.args="2"
mvn exec:java -Dexec.mainClass="Publisher" -Dexec.args="3"
mvn exec:java -Dexec.mainClass="Publisher" -Dexec.args="4"

# JAVA 程序

# MyListener.java

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29


import jakarta.jms.Message;
import jakarta.jms.MessageListener;
import jakarta.jms.ObjectMessage;
import jakarta.jms.Message;
import jakarta.jms.TextMessage;

public class MyListener implements MessageListener {

	private ASyncConsumer consumer ;

	public MyListener ( ASyncConsumer consumer ) {
		this.consumer = consumer ;
	}

	public void onMessage(Message message) {
		try {
			String text = ((TextMessage) message).getText() ;
			System.out.println("Received a message: "+text);
			consumer.storeMessage(text);
			consumer.publisher("ACK");
		} catch (Exception e) {
			e.printStackTrace();
		}
	}

}

# Publisher.java

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
import jakarta.jms.Connection;
import java.util.Random ;
import jakarta.jms.ConnectionFactory;
import jakarta.jms.Destination;
import jakarta.jms.JMSException;
import jakarta.jms.Message;
import jakarta.jms.MessageProducer;
import jakarta.jms.ObjectMessage;
import jakarta.jms.Session;
import jakarta.jms.Topic;

import org.apache.activemq.ActiveMQConnectionFactory;

public class Publisher {

    private static String brokerURL = "tcp://localhost:61616";
    private static ConnectionFactory factory;
    private Connection connection;
    private Session session;
    private MessageProducer producer;
	private Topic topic;

    public Publisher(String topicName) throws JMSException {

    	factory = new ActiveMQConnectionFactory(brokerURL);
    	connection = factory.createConnection();

        session = connection.createSession(false, Session.AUTO_ACKNOWLEDGE);
		topic = session.createTopic(topicName);
        producer = session.createProducer(topic);

		connection.start();
    }

    public void close() throws JMSException {
        if (connection != null) {
            connection.close();
        }
    }

	public static void main(String[] args) throws JMSException {
    	Publisher publisher = new Publisher("MYTOPIC");
    	System.out.println(args[0]) ;
    	while ( true ) {
    		publisher.sendMessage(args[0]);
        	try {
				Thread.sleep(1000);
			} catch (InterruptedException e) {
				// TODO Auto-generated catch block
				publisher.close();
				e.printStackTrace();
			}
    	}
	}

    public void sendMessage(String UID ) throws JMSException {
        Random random = new Random( ) ;
    	int num = Integer.parseInt(UID) ;
        double mean = num ;
        double stdDev = 1 ;
        double randomNumner = random.nextGaussian() * stdDev + mean ;
        Message message = session.createTextMessage(UID+"+"+Double.toString(randomNumner));
		//for(int i=0;i<15;i++){
		producer.send(message);
		System.out.println("Sent a message!");
		//}
    }

    public void sendData ( String Data ) throws JMSException {
    	Message message = session.createTextMessage(Data) ;
    	producer.send(message);
    	System.out.println ("Sent a Data!") ;
    }

}

# ASyncConsumer.java

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127

import jakarta.jms.Connection;
import jakarta.jms.ConnectionFactory;
import jakarta.jms.Destination;
import jakarta.jms.JMSException;
import jakarta.jms.MessageConsumer;
import jakarta.jms.MessageProducer;
import jakarta.jms.Session;
import jakarta.jms.Message;
import jakarta.jms.TextMessage;
import jakarta.jms.Topic;
import java.util.ArrayList ;
import java.util.List;

import org.apache.activemq.ActiveMQConnectionFactory;

public class ASyncConsumer {

	private List<String> messages ;
	private List<Double>[] arrayOfLists = new List[5] ;

	public ASyncConsumer ( ) {
		messages = new ArrayList<>() ;
		for ( int i = 0 ; i < arrayOfLists.length ; i ++ ) {
			arrayOfLists[i] = new ArrayList<>() ;
		}
	}

	public void storeMessage ( String message ) {
		messages.add(message) ;
		String[] parts = message.split("\\+") ;
		String intPart = parts[0] ;
		String doublePart = parts[1] ;
		int uid = Integer.parseInt(intPart) ;
		double val = Double.parseDouble(doublePart) ;
		arrayOfLists[uid].add(val) ;
	}

	public List<String> getMessages ( ) {
		return messages ;
	}

	public void printMessages ( ) {
		System.out.println("Messages:") ;
		for ( String message : messages ) {
			System.out.print ( "orz" + message ) ;
		}
	}

    public static double calculateMean(List<Double> data) {
        double sum = 0;
        for (double value : data) {
            sum += value;
        }
        if ( data.size() == 0 ) return 0 ;
        return sum / data.size();
    }

    public static double calculateVariance(List<Double> data, double mean) {
        double sumSquaredDiff = 0;
        for (double value : data) {
            sumSquaredDiff += Math.pow(value - mean, 2);
        }
        if ( data.size() == 0 ) return 0 ;
        return sumSquaredDiff / data.size();
    }

	public void publisher ( String topicname ) throws JMSException {
		Publisher publisher = new Publisher("DATA");
		int n = 5 ;
		for ( int i = 0 ; i < 5 ; i ++ ) {
			double mean = calculateMean (arrayOfLists[i].subList(Math.max(arrayOfLists[i].size()-n, 0),arrayOfLists[i].size())) ;
			double variance = calculateVariance (arrayOfLists[i].subList(Math.max(arrayOfLists[i].size()-n, 0),arrayOfLists[i].size()),mean) ;
			double Max = arrayOfLists[i].stream().mapToDouble(Double::doubleValue).max().orElse(0) ;
			double Min = arrayOfLists[i].stream().mapToDouble(Double::doubleValue).min().orElse(0) ;
			//if ( Max == Double.NaN ) Max = 0 ;
			//if ( Min == Double.NaN ) Min = 0 ;
			double cur = 0 ;
			if ( arrayOfLists[i].size() != 0 )
				cur = arrayOfLists[i].get(arrayOfLists[i].size()-1) ;
			else
				cur = 0 ;
			String Data = Integer.toString(i)+"+"+Double.toString(mean)+"+"+Double.toString(variance)+"+"+Double.toString(Max)+"+"+Double.toString(Min)+"+"+Double.toString(cur);
			publisher.sendData(Data);
		}
	}

    public static void main(String[] args) throws JMSException {
    	ASyncConsumer consumer = new ASyncConsumer ( ) ;

		String brokerURL = "tcp://localhost:61616";
		ConnectionFactory factory = null;
		Connection connection = null;
		Session session = null;
		Topic topic = null;
		MessageConsumer messageConsumer = null;
		MyListener listener = null;


		try {
			factory = new ActiveMQConnectionFactory(brokerURL);
			connection = factory.createConnection();

			session = connection.createSession(false, Session.AUTO_ACKNOWLEDGE);
			topic = session.createTopic("MYTOPIC");

			messageConsumer = session.createConsumer(topic);

			listener = new MyListener(consumer);

			messageConsumer.setMessageListener(listener);

			connection.start();

			//consumer.printMessages();

			System.out.println("Press any key to exit.");
			System.in.read();   // Pause
		} catch (Exception e) {
			e.printStackTrace();
		} finally {
			connection.close();
		}
	}

}

# ShowConsumer

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97

import jakarta.jms.Connection;
import jakarta.jms.ConnectionFactory;
import jakarta.jms.Destination;
import jakarta.jms.JMSException;
import jakarta.jms.MessageConsumer;
import jakarta.jms.MessageProducer;
import jakarta.jms.Session;
import jakarta.jms.Message;
import jakarta.jms.TextMessage;
import jakarta.jms.Topic;
import java.util.ArrayList ;
import java.util.List;

import org.apache.activemq.ActiveMQConnectionFactory;

public class ShowConsumer {
	private List<Double>[][] arrayOfLists = new List[6][5] ;
	RealTimeChart[] chart = new RealTimeChart[6] ;
	// 数组1，2，3，4,5分别代表均值，方差，最大值，最小值,目前值
	public ShowConsumer ( ) {
		for ( int i = 1 ; i < 6 ; i ++ ) {
			for ( int j = 0 ; j < 5 ; j ++ ) {
				arrayOfLists[i][j] = new ArrayList<>() ;
			}
		}
		for ( int i = 1 ; i < 6 ; i ++ ) {
			chart[i] = new RealTimeChart ( "History Data" , "UID"+Integer.toString(i) , 500 ) ;
		}
	}


	public void paint ( ) {
		for ( int i = 1 ; i < 6 ; i ++ ) {
			if ( arrayOfLists[i][4].size() != 0 )
				chart[i].plot(arrayOfLists[i][4].get(arrayOfLists[i][4].size()-1));
		}
	}

	public void storeMessage ( String message ) {
		String[] parts = message.split("\\+") ;
		String uidPart = parts[0] ;
		String meanPart = parts[1] ;
		String variancePart = parts[2] ;
		String maxPart = parts[3] ;
		String minPart = parts[4] ;
		String curPart = parts[5] ;
		int uid = Integer.parseInt(uidPart) ;
		double mean = Double.parseDouble(meanPart) ;
		double variance = Double.parseDouble(variancePart) ;
		double Max = Double.parseDouble(maxPart) ;
		double Min = Double.parseDouble(minPart) ;
		double cur = Double.parseDouble(curPart) ;
		arrayOfLists[uid][0].add(mean) ;
		arrayOfLists[uid][1].add(variance) ;
		arrayOfLists[uid][2].add(Max) ;
		arrayOfLists[uid][3].add(Min) ;
		arrayOfLists[uid][4].add(cur) ;
	}
	public static void main(String[] args) throws JMSException {
    	ShowConsumer consumer = new ShowConsumer ( ) ;

		String brokerURL = "tcp://localhost:61616";
		ConnectionFactory factory = null;
		Connection connection = null;
		Session session = null;
		Topic topic = null;
		MessageConsumer messageConsumer = null;
		MyListener2 listener = null;


		try {
			factory = new ActiveMQConnectionFactory(brokerURL);
			connection = factory.createConnection();

			session = connection.createSession(false, Session.AUTO_ACKNOWLEDGE);
			topic = session.createTopic("DATA");

			messageConsumer = session.createConsumer(topic);

			listener = new MyListener2(consumer);

			messageConsumer.setMessageListener(listener);

			connection.start();

			//consumer.printMessages();

			System.out.println("Press any key to exit.");
			System.in.read();   // Pause
		} catch (Exception e) {
			e.printStackTrace();
		} finally {
			connection.close();
		}
	}
}

# MyListener2.java

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

import jakarta.jms.Message;
import jakarta.jms.MessageListener;
import jakarta.jms.ObjectMessage;
import jakarta.jms.Message;
import jakarta.jms.TextMessage;

public class MyListener2 implements MessageListener {

	private ShowConsumer consumer ;

	public MyListener2 ( ShowConsumer consumer ) {
		this.consumer = consumer ;
	}

	public void onMessage(Message message) {
		try {
			String text = ((TextMessage) message).getText() ;
			System.out.println("Received a message2: "+text);
			consumer.storeMessage(text);
			consumer.paint ( ) ;
			//consumer.publisher("ACK");
		} catch (Exception e) {
			e.printStackTrace();
		}
	}

}

# RealTimeChart.java

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81

import java.util.LinkedList;
import java.util.List;

import javax.swing.JFrame;

import org.knowm.xchart.SwingWrapper;
import org.knowm.xchart.XYChart;
import org.knowm.xchart.XYChartBuilder;
import org.knowm.xchart.style.Styler.ChartTheme;
import org.knowm.xchart.style.Styler.LegendLayout;
import org.knowm.xchart.style.Styler.LegendPosition;

public class RealTimeChart {
	private SwingWrapper<XYChart> swingWrapper ;
	private XYChart chart ;
	private JFrame frame ;

	private String title ;
	private String seriesName ;
	private List<Double> seriesData ;
	private int size = 1000 ;

	public int getSize ( ) {
		return size ;
	}

	public String getSeriesName ( ) {
		return seriesName ;
	}

	public void setSeeriesName ( String seriesName ) {
		this.seriesName = seriesName ;
	}

	public String getTitle ( ) {
		return title ;
	}

	public void setTitle ( String title ) {
		this.title = title ;
	}

	public RealTimeChart ( String title , String seriesName ) {
		super ( ) ;
		this.seriesName = seriesName ;
		this.title = title ;
	}

	public RealTimeChart ( String title , String seriesName , int size ) {
		super ( ) ;
		this.seriesName = seriesName ;
		this.title = title ;
		this.size = size ;
	}

	public void plot ( double data ) {
		if ( seriesData == null ) {
			seriesData = new LinkedList<>() ;
		}
		if ( seriesData.size( ) == this.size ) {
			seriesData.clear ( ) ;
		}
		seriesData.add(data) ;

		if ( swingWrapper == null ) {
			chart = new XYChartBuilder().width(600).height(450).theme(ChartTheme.Matlab).title(title).build();
			chart.addSeries(seriesName, null, seriesData);
			chart.getStyler().setLegendPosition(LegendPosition.OutsideS);// 设置legend的位置为外底部
			chart.getStyler().setLegendLayout(LegendLayout.Horizontal);// 设置legend的排列方式为水平排列

			swingWrapper = new SwingWrapper<XYChart>(chart);
			frame = swingWrapper.displayChart();
			frame.setDefaultCloseOperation(JFrame.DISPOSE_ON_CLOSE);// 防止关闭窗口时退出
		}
		else {
			chart.updateXYSeries ( seriesName , null , seriesData , null ) ;
			swingWrapper.repaintChart();
		}
	}
}

# 实现效果

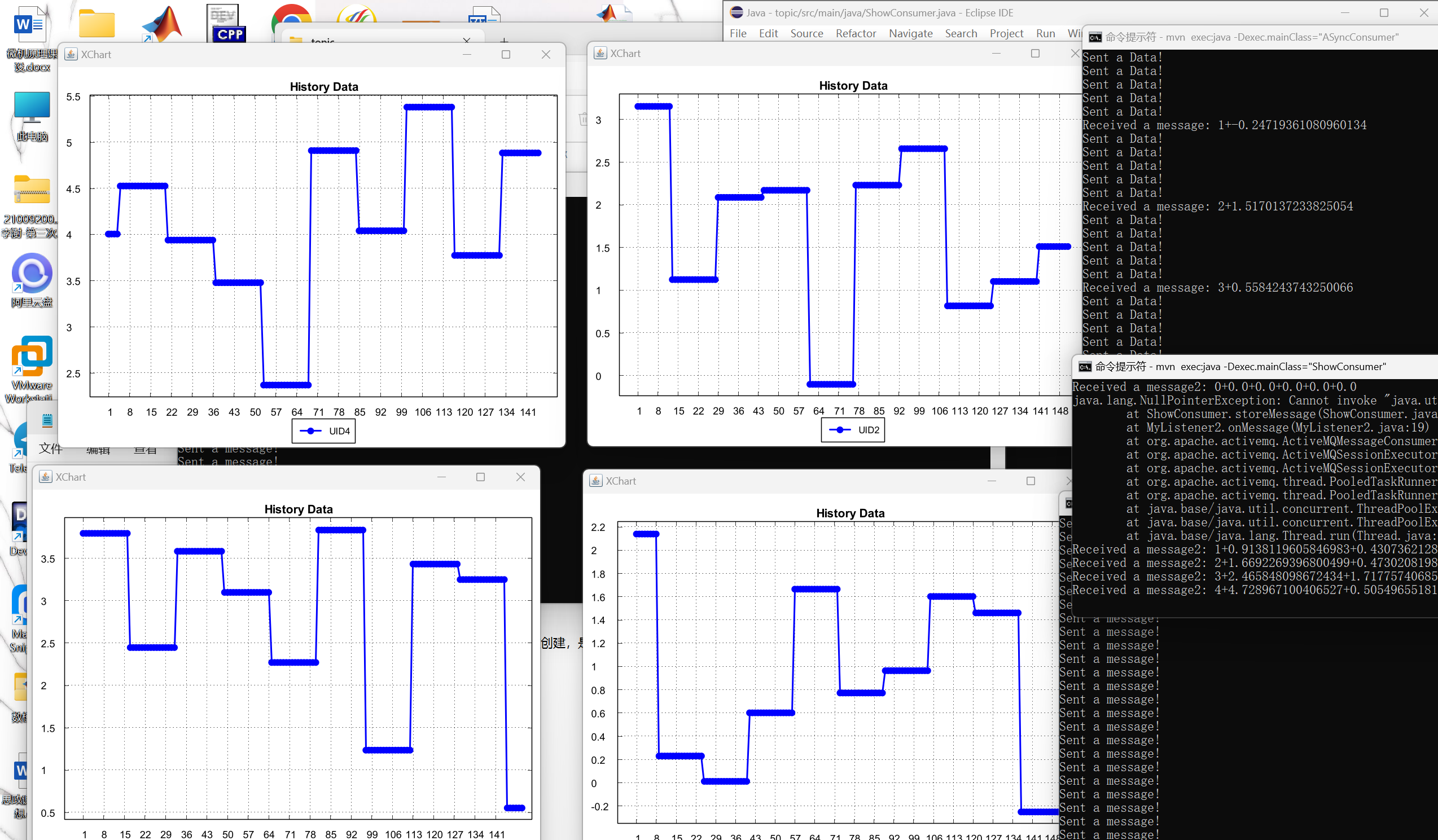

可以看到不同的产生器的数据分布在不同的值之间，产生器 1 徘徊在 1 之间，产生器 2 徘徊在 2 之间以此类推
可以看到无论是处理器还是产生器在命令指示符中均正常工作，达到实验预期！

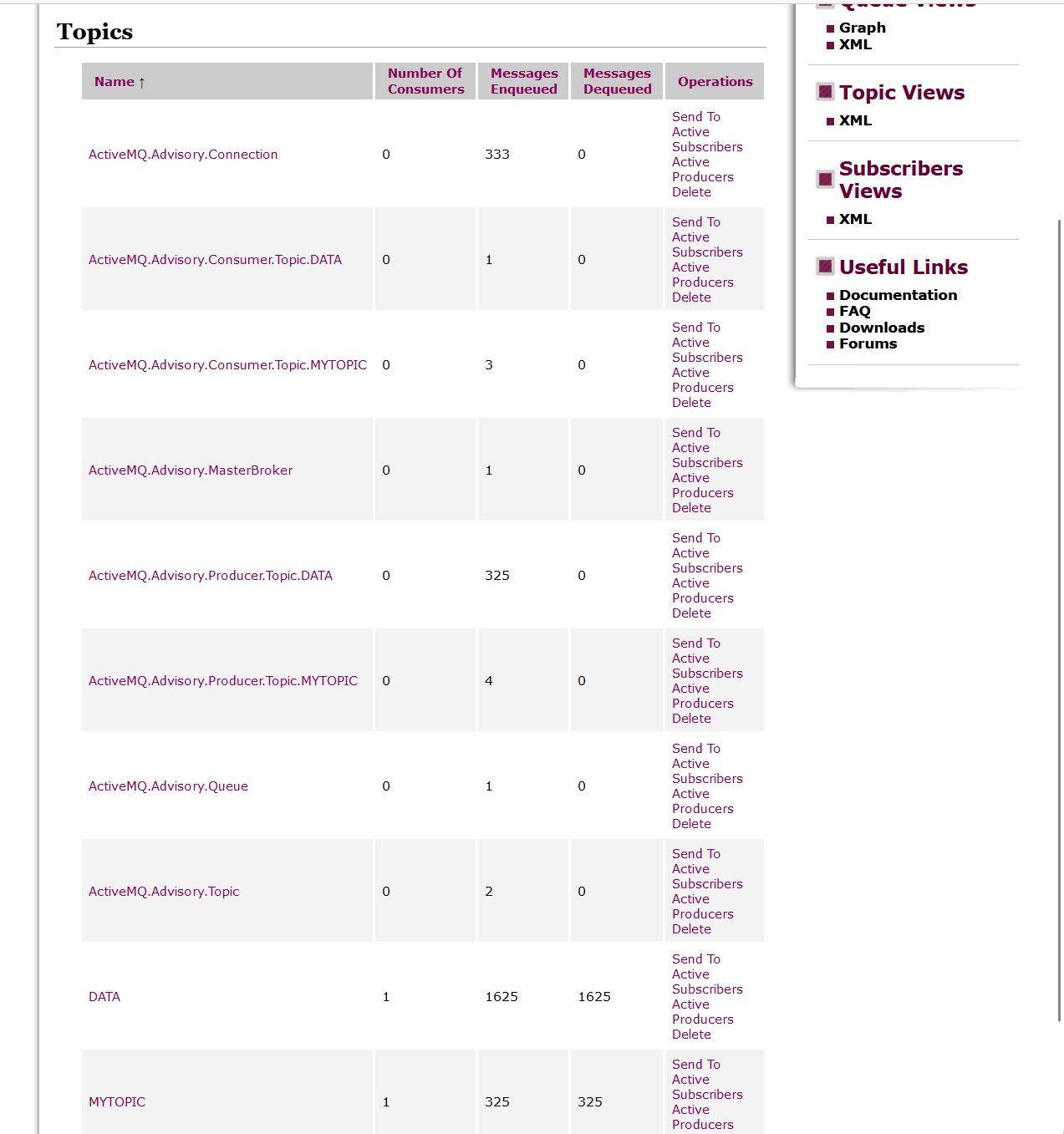

观察 topic 界面，可以看出在正常工作，符合预期！
